Module - Water Capture

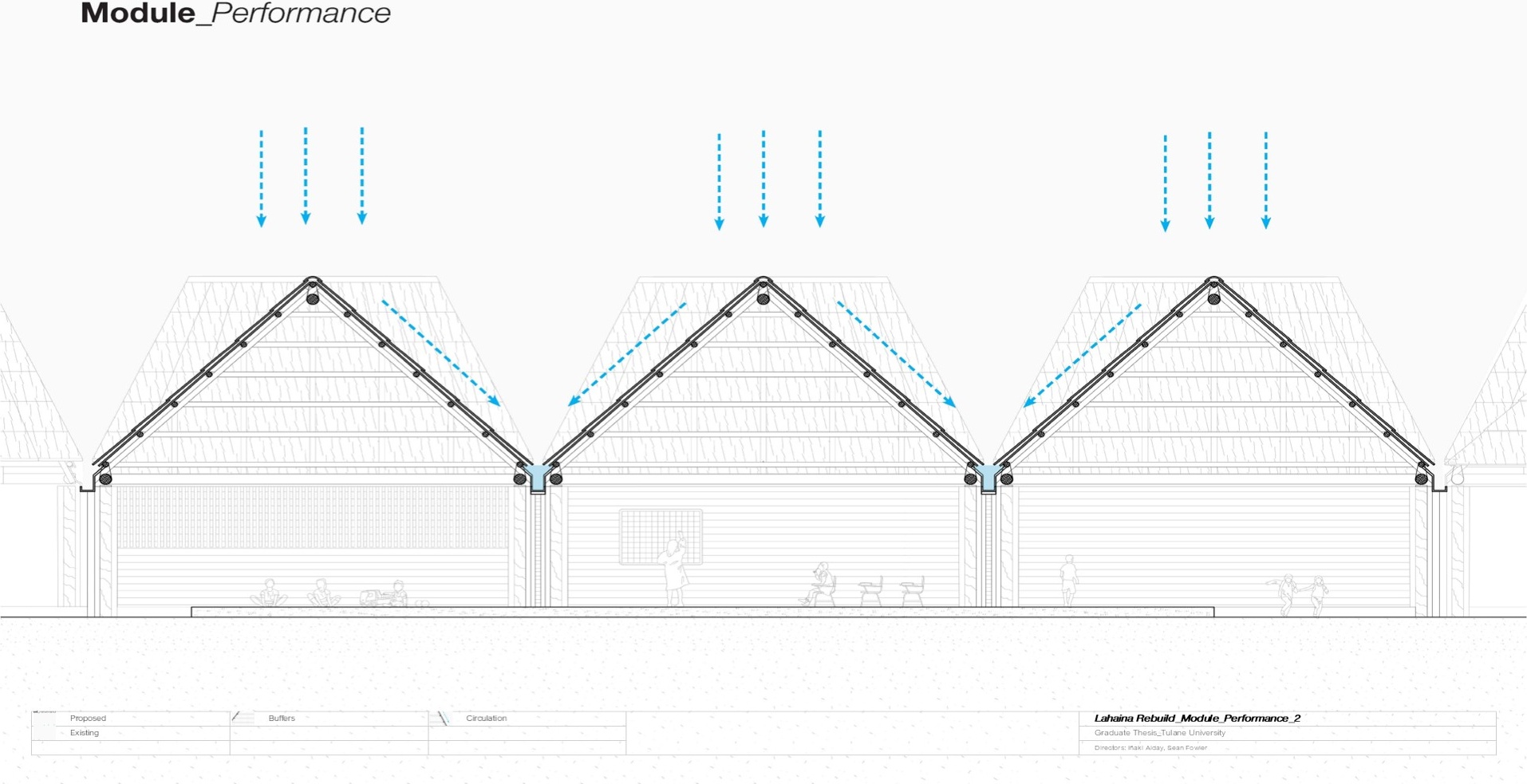

Each module captures rainwater through sloped roofs directing flow into gutters between connected units. A custom Y-shaped column connector at valley gutters merges structural and drainage functions. Subsurface volcanic gravel beds and storage tanks beneath module clusters capture water for non-potable reuse.

Performance data

Metric	Value
Roof catchment area	57,460 sq ft
Collection efficiency	80%
Annual yield	429,801 gallons
Daily average	~1,178 gallons
Demand offset	12–26%
Recommended storage	160,000–250,000 gallons

This on-site harvesting is a regulatory necessity: West Maui’s Stage 2 water shortage prevents new water meter processing and restricts irrigation to one day per week. The school’s catchment demonstrates how public architecture contributes to distributed water infrastructure.
